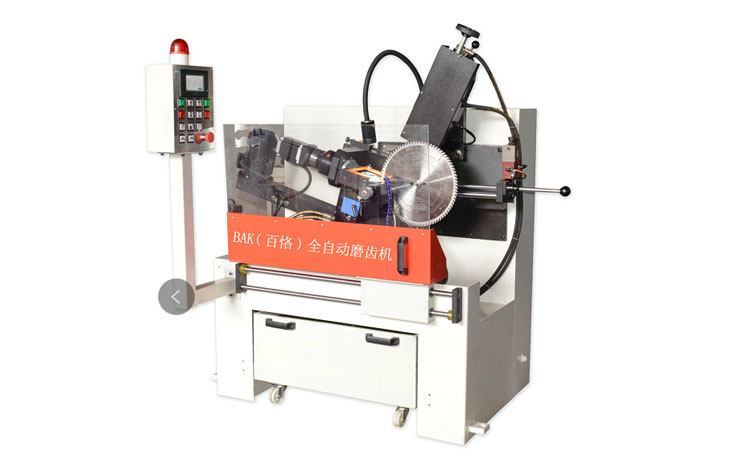

49盛彩Alloy Saw Blade Grinding Machine/Imported Saw Blade
49盛彩This equipment is suitable for woodworking saw blades in furniture factories, multi-blade saw blades with scrapers, and alloy circular saw blades in aluminum factories.It can grind alloy circular saw blades with a diameter of Φ480-800.The operation is simple and Fully extend the service life of alloy circular saw blades, each blade can be reused 15- 30 times, this equipment has been praised by many buyers。
| 合金锯片磨齿机的参数 | |
|---|---|
| 加工锯片直径范围 | Φ80-800mm |
| 锯片孔径 | Φ10-220mm |
| 锯片厚度（钢板） | 1-7mm |
| 齿距 | 5-100mm |
| 齿面角度 | 1°-45° |
| 齿顶背角 | 2°-45° |
| 齿左右斜度 | 齿顶/齿面1°-45° |
| 刃磨行程范围 | 最大28mm（可调）齿/分 |
| 刃磨速度 | 0.5-6mm/s |
| 工作速度 | 最大20齿/分 |
| 砂轮尺寸(外径x孔) | Φ125mm×Φ32mm |
| 负倒角研磨 | -20° |
| 磨头可旋转角度 | 90°，180° |
| 砂轮转速 | 5600R/min |
| 冷却液水泵流量 | 50L/min |
| 冷却液缸容积 | 85L |
| 总功率 | 3KW |
| 电压 | 三相380v |
| 机械重量 | 700KG |
| 机械尺寸(长x宽x高) | 1200×1100×1800mm |
49盛彩This equipment is suitable for woodworking saw blades in furniture factories, multi-blade saw blades with scrapers, and alloy circular saw blades in aluminum factories.It can grind alloy circular saw blades with a diameter of Φ480-t 800.The operation is simple and Fully extend the service life of alloy circular saw blades, each blade can be reused 15-30 times, this equipment has been praised by many buyers.
